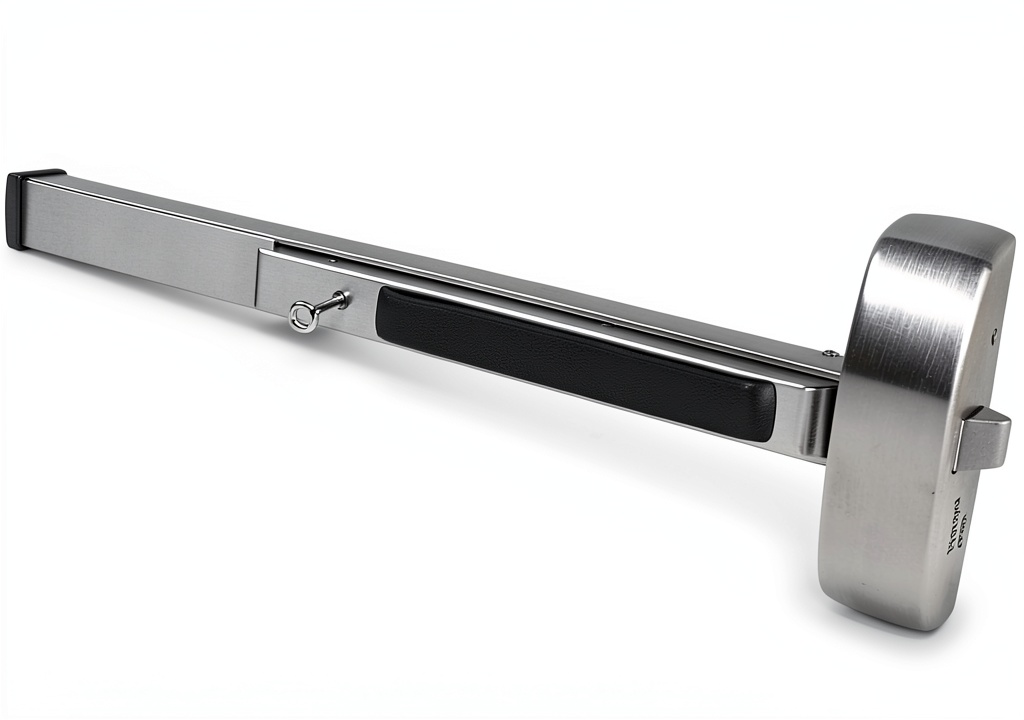

Sargent 80 Series Satin Stainless Steel Exit Device 36″ Door

Description

Product Overview

The Sargent 80 Series satin stainless steel less‑trim rim exit device is engineered for high‑traffic commercial applications where durability, safety, and aesthetic appeal are paramount. Constructed from premium satin‑finished stainless steel, the device resists corrosion, fingerprints, and the wear of daily use, maintaining a sleek appearance that complements modern architectural designs. The less‑trim rim configuration reduces the visual bulk on the door edge while providing a secure, fire‑rated barrier that meets stringent building code requirements. With a 36‑inch door width capacity, this model fits standard commercial door openings, delivering a seamless integration that eliminates the need for additional adapters or custom modifications.

Beyond its robust construction, the exit device incorporates a precision‑engineered touch bar that allows occupants to open the door with a simple push, eliminating the need for keys or complex mechanisms. The touch bar is calibrated to provide a consistent, low‑force activation, ensuring quick egress during emergencies while minimizing wear on the hardware. The device’s internal components are assembled with tight tolerances, guaranteeing reliable performance over thousands of cycles and reducing maintenance intervals. Additionally, the satin stainless steel finish is tested for high‑temperature resistance, preserving its integrity even in fire‑rated installations where exposure to heat is a critical factor.

Technical specifications include a part number 8804F‑32D, an item weight of 12.3 pounds, and compact package dimensions of 38 × 6 × 0.3 inches, facilitating straightforward shipping and handling. The hardware set includes all necessary mounting brackets, screws, and the touch bar assembly, allowing installers to complete the installation with minimal additional parts. The device is designed for easy retrofitting into existing door frames, and its flush‑end cap design ensures a clean, unobtrusive profile that aligns with the surrounding door surface.

Usage

This exit device is ideally suited for a wide range of commercial environments, including office buildings, retail spaces, educational facilities, healthcare institutions, and hospitality venues. In each of these settings, the need for reliable, code‑compliant egress solutions is critical, and the Sargent 80 Series delivers both performance and visual harmony. The satin stainless steel finish blends effortlessly with both contemporary glass doors and traditional wood‑panel doors, making it a versatile choice for architects and facility managers seeking a unified aesthetic across multiple entry points.

Installation is straightforward for experienced hardware technicians, with clear instructions that guide the mounting process from start to finish. The device’s less‑trim rim design reduces the amount of material that must be cut from the door edge, preserving the structural integrity of the door while still providing a secure latch. Because the device does not require batteries, it offers a maintenance‑free solution that reduces long‑term operating costs. Its fire‑rated capabilities make it an essential component in life‑safety systems, ensuring that doors equipped with this hardware will remain closed under fire conditions, thereby containing the spread of smoke and flame.

For high‑traffic areas, the touch bar’s low‑force operation minimizes fatigue for frequent users, such as employees entering and exiting a building multiple times per day. The device’s smooth action also reduces the likelihood of door damage caused by forced opening, extending the lifespan of both the door and the hardware. In addition, the satin stainless steel surface is easy to clean, resisting grime and allowing custodial staff to maintain a professional appearance with simple wiping procedures.

Why Choose Us

Choosing the Sargent 80 Series exit device means partnering with a brand that has a legacy of over a century in door hardware innovation. Sargent’s commitment to quality is reflected in rigorous testing protocols that evaluate each unit for corrosion resistance, fire performance, and mechanical endurance. Every device undergoes a multi‑stage quality assurance process, from raw material inspection to final functional testing, ensuring that customers receive a product that meets or exceeds industry standards.

Our dedicated support team provides comprehensive after‑sales service, including technical assistance, installation guidance, and warranty coverage. Should any issues arise, customers can rely on prompt response times and knowledgeable representatives who understand the intricacies of commercial door hardware. Moreover, Sargent offers a range of complementary accessories, such as additional touch bars, panic hardware, and replacement parts, allowing facilities to maintain a consistent hardware ecosystem throughout their property portfolio.

Key Features

• Premium satin stainless steel finish resists corrosion and maintains a polished look in high‑traffic environments.
• Less‑trim rim design reduces door edge material removal while delivering fire‑rated protection.
• Touch bar provides effortless, key‑free egress with low‑force activation for quick exit.
• Fits 36‑inch door widths, allowing seamless installation on standard commercial doors without adapters.
• Comprehensive customer support and warranty ensure reliable performance and peace of mind.

Installation Guide

The installation process begins with verifying the door frame dimensions and confirming that the 36‑inch opening matches the device’s specifications. Remove any existing hardware, then position the mounting brackets on the door edge, ensuring they are level and aligned with the strike plate. Secure the brackets using the supplied screws, taking care not to overtighten, which could deform the stainless steel components. Insert the touch bar into the designated slot, confirming that it moves freely without obstruction. Finally, attach the exit device body to the brackets, engage the latch mechanism, and test the operation by pushing the touch bar to confirm smooth release.

For retrofitting projects, the less‑trim rim design simplifies the process by requiring minimal material removal from the door edge. This not only preserves the structural integrity of the door but also reduces installation time and labor costs. Detailed step‑by‑step diagrams are included in the installation manual, providing visual guidance for each stage of the process. If additional adjustments are needed, the device’s adjustable strike plate allows fine‑tuning to achieve optimal latch engagement.

Maintenance & Care

Routine maintenance of the satin stainless steel finish involves wiping the surface with a soft, non‑abrasive cloth and a mild detergent solution. Avoid using harsh chemicals or abrasive pads, as these can damage the protective coating. Inspect the touch bar and latch mechanism quarterly for signs of wear or debris accumulation. If any resistance is felt, clean the moving parts with a light oil spray to restore smooth operation. The device’s mechanical design eliminates the need for battery replacement, further reducing maintenance requirements.

In environments with high humidity or exposure to chemicals, it is advisable to perform a visual inspection every six months to ensure the stainless steel finish remains intact. Should any corrosion be observed, a specialized stainless steel cleaner can be applied to restore the original appearance. All hardware components are designed for long‑term durability, and the manufacturer’s warranty covers defects in materials and workmanship for a specified period.

Compliance & Certifications

The Sargent 80 Series exit device complies with major international standards, including UL 294 for electronic access control devices and NFPA 101 for life safety. Its fire‑rated construction has been tested to meet the requirements of ASTM E119, ensuring that the device will remain latched for the duration of a standard fire exposure test. Additionally, the satin stainless steel finish conforms to ASTM A240 specifications for corrosion resistance in commercial applications.

Certification documentation is provided with each unit, allowing facility managers to verify compliance during audits and inspections. The device’s design also supports ADA accessibility guidelines, offering a push‑to‑open mechanism that accommodates users with limited hand strength. By meeting these rigorous standards, the exit device provides peace of mind to building owners, architects, and safety officials alike.

FAQ

What fire rating does this exit device have?

The Sargent 80 Series device is tested and certified to meet standard fire‑rated requirements for commercial doors, ensuring it remains latched under fire conditions to help contain smoke and flame spread.

Can the device be installed on doors wider than 36 inches?

While the device is optimized for 36‑inch door openings, it can be adapted for slightly larger doors using compatible mounting brackets, though performance may vary and additional hardware may be required.

Is any special maintenance required for the satin stainless steel finish?

The satin finish is designed for low‑maintenance use; regular cleaning with a non‑abrasive cloth and mild detergent is sufficient to keep the surface looking new and to prevent buildup of grime.

Does the touch bar require batteries or power?

No, the touch bar operates mechanically and does not require any batteries or external power sources, providing a reliable, maintenance‑free solution.

What is included in the package?

The package contains the exit device assembly, touch bar, mounting brackets, screws, and a detailed installation guide, allowing a complete installation without the need for additional components.
